If you work in packaging production, procurement or brand development and have encountered the term sputtering metallization without being entirely sure what it means, you are not alone. The technology has been in industrial use for decades and is responsible for many of the metallic surfaces you see on cosmetic bottles, fragrance caps, pharmaceutical closures and premium beverage packaging — yet it remains poorly understood outside the specialist circles that work with it directly.
This guide explains what sputtering is, how it differs from other metallization approaches, what it produces and why it has become the preferred technology for high-quality metallic finishes in packaging applications. No prior technical knowledge is assumed.

What sputtering actually is

Sputtering is a physical process for depositing thin layers of material — in packaging applications, usually a metal — onto the surface of a component. It takes place inside a vacuum chamber, from which air has been removed to create a controlled low-pressure environment.
Inside this vacuum, a target material — a solid plate of the metal to be deposited, most commonly aluminium — is bombarded with high-energy ions. The impact ejects atoms from the target surface. These atoms travel through the vacuum and land on the surface of the component being coated, building up a thin, uniform metallic layer. The whole process is physical rather than chemical: no liquid baths, no reactive compounds, no high temperatures applied to the component.
The layer produced by sputtering is extraordinarily thin — typically a few hundred nanometres, which is far thinner than a human hair. Despite this thinness, it is uniform, well-adhered and optically consistent: it reflects light with the depth and intensity that the human eye reads as genuinely metallic.

How sputtering differs from other metallization methods

The most common alternative to sputtering in industrial packaging decoration is thermal evaporation — another vacuum-based process in which the target metal is heated until it evaporates and condenses on the component surface. Thermal evaporation is fast and cost-effective for simple applications, but it produces a more directional deposition pattern that struggles to coat complex three-dimensional shapes uniformly.
Sputtering produces a more diffuse deposition pattern, which means it can reach recessed areas and curved surfaces more effectively than thermal evaporation. This is why 3D sputtering has become the preferred choice for cosmetic packaging, where bottles, caps and closures often present complex geometries that simpler metallization methods cannot coat consistently.
Electroplating — the electrochemical deposition of metal from a liquid bath — is another alternative with different characteristics. Electroplating can produce thicker, more robust metallic layers than sputtering, but it involves hazardous chemical processes, generates significant liquid waste and is less flexible in terms of substrate compatibility. The shift from electroplating to sputtering in many packaging and automotive trim applications has been driven by a combination of environmental pressure and the technical advantages of vacuum-based deposition.

The role of UV coatings in a sputtering system

Sputtering metallization in packaging does not operate in isolation. The metallic layer is always part of a multilayer coating system that includes UV coatings applied before and after the metal deposition.
The UV base coat is applied to the component surface before sputtering. Its primary function is to create a smooth, consistent and adhesion-ready surface for the metallic layer above it. The quality of the base coat directly affects the visual quality of the metallic finish — a smooth base coat produces a mirror-like metallic effect, while any irregularity in the base coat will scatter light and reduce the reflective quality of the surface.
The UV top coat is applied over the sputtered metallic layer. It seals and protects the metallic surface, adds depth and gloss to the visual effect, and provides the mechanical and chemical resistance that the finished packaging requires in daily use. The top coat formulation determines whether the final surface is mirror-bright, softly satin or deeply matte — all achievable within the same production system by changing the coating formulation.

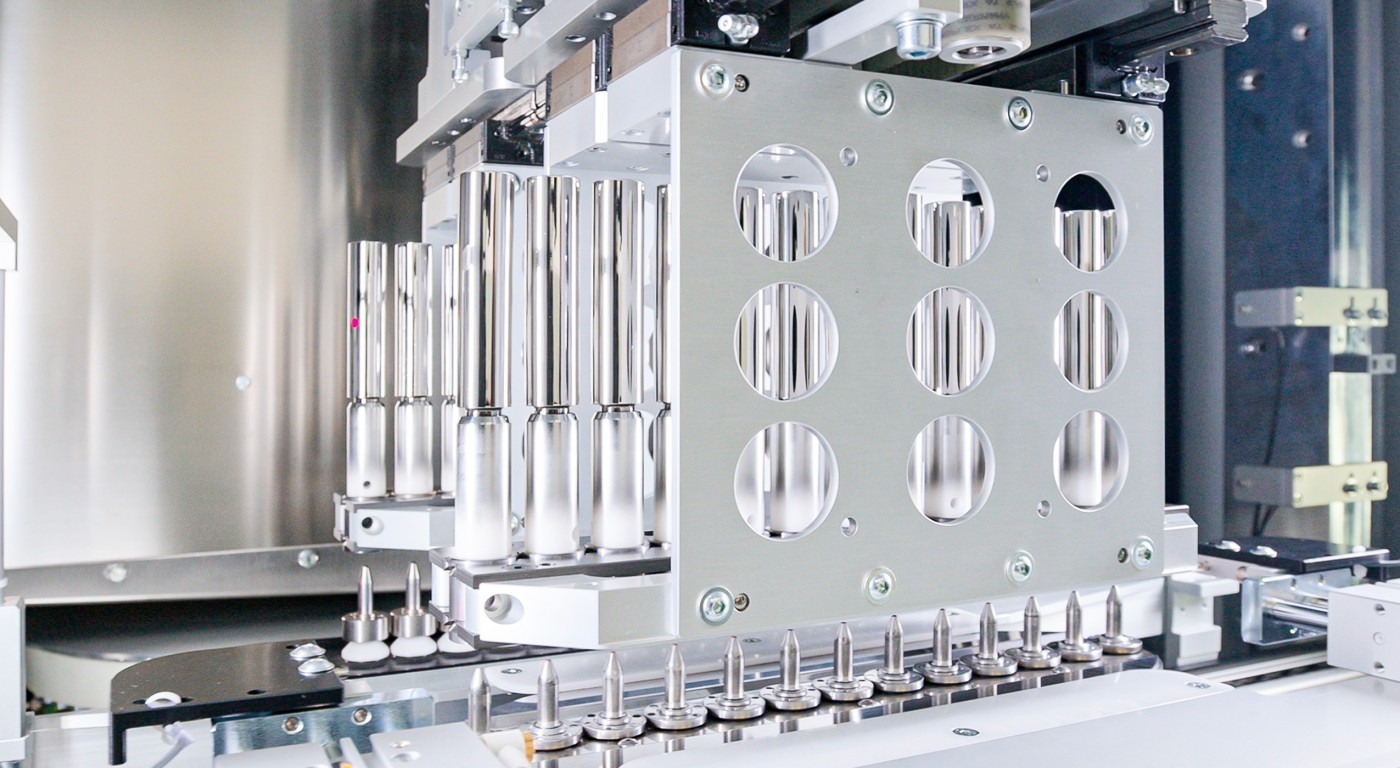

How inline sputtering works in production

In modern packaging decoration, sputtering is performed as part of a fully automated inline production system rather than as a standalone batch process. Components move continuously through the decoration sequence — cleaning and pre-treatment, UV base coat, sputtering and UV top coat — without being removed from the line between stages.
Tapematic PST Line II is designed around this inline approach. The system integrates all decoration stages into a continuous automated flow, managed by a single operator. Components enter at one end and exit as finished decorated pieces, having passed through every stage under controlled, repeatable conditions. The modular architecture of the system means it can be configured for different packaging formats — from small cosmetic caps to fragrance bottles to pharmaceutical closures — with process parameters stored and recalled digitally for each product.
For manufacturers who need the same inline sputtering capability in a more compact, lower-investment format, Tapematic PST Line C delivers equivalent decoration quality in a non-modular, single-unit system — suitable as a standalone installation or with the option to integrate an additional sputtering module over time.

What sputtering is used for in packaging

Sputtering metallization is used across a wide range of packaging categories where a high-quality metallic surface finish is commercially important. In cosmetic packaging, it is the standard technology for caps, bottles, jars, lipstick cases and compacts in the prestige and masstige segments. In fragrance packaging, it decorates closures and bottle components where the metallic effect is a primary signal of luxury positioning. In pharmaceutical packaging, it is applied to closures and components where both aesthetic and functional requirements must be met. In beverage packaging, it decorates the external surfaces of spirits closures where the visual quality of the metallic finish contributes directly to the perceived premium character of the product.
Across all of these applications, the reason for choosing sputtering over alternatives is the same: it produces the most visually compelling, most durable and most consistently reproducible metallic finish available through any industrial coating process.
