YOUR OWN S8+3

The Future of Metalization Technology

Tapematic S8+3 sputtering module will enable you to sputter three dimensional objects in a streamlined, efficient, automated and completely reliable process. Thanks to its unique load-lock design, it is capable of sputtering 3D items while simultaneously loading and offloading, thereby always maintaining the sputtering chamber in high vacuum.
FEATURES

Go Where No others Has Gone Before

Compared to the traditional evaporation process, the S8+3 is revolutionary. it produces no waste materials and uses only the very minimum amount of metal to achieve the same result with an ultra-thin coating. Application dependent, the system's magnetic field is fine tuned to achieve the best possible performance in terms of reflectivity, uniformity, cycle time, and cost per part optimization.

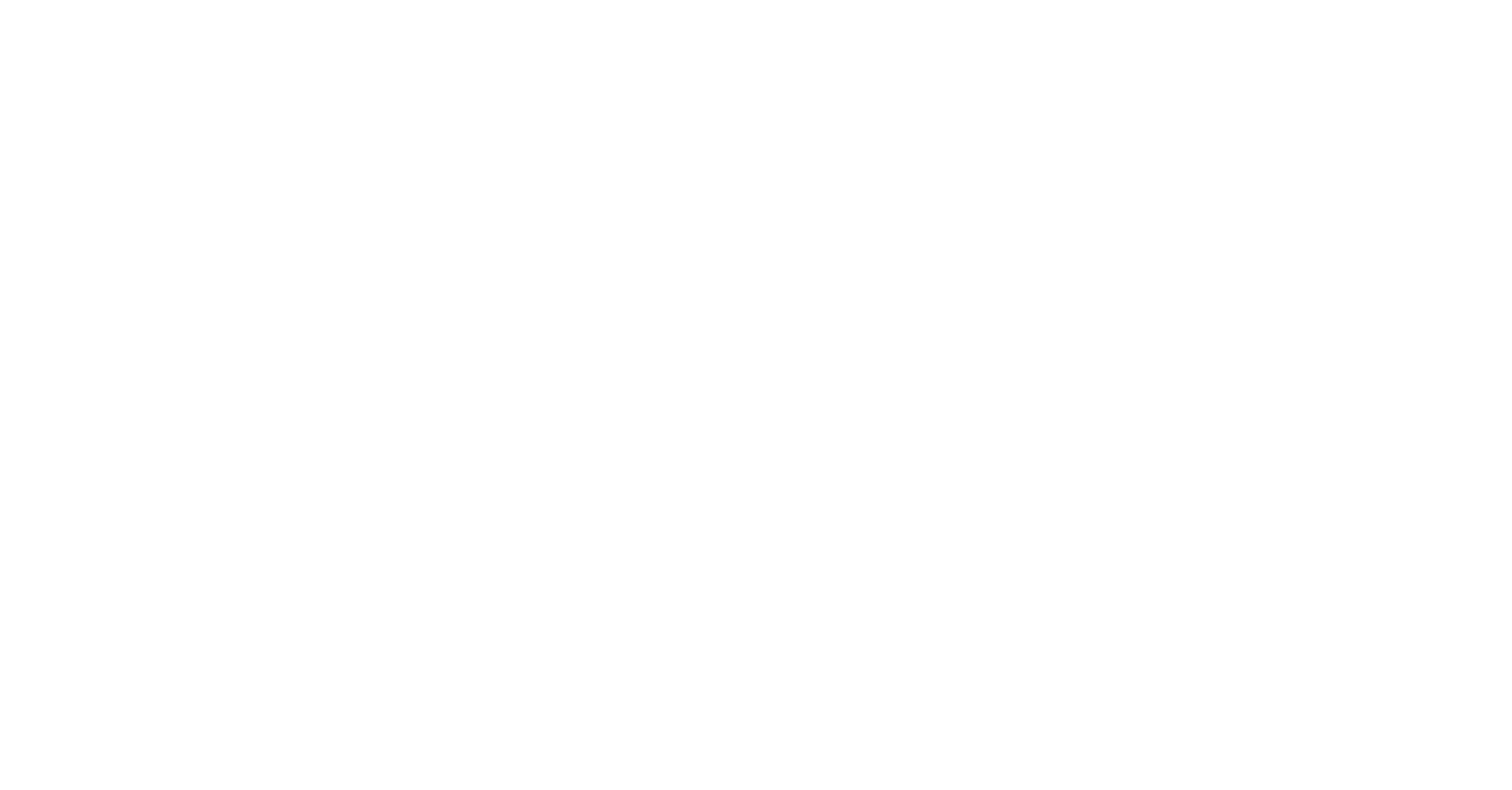

Technical Specs
Object dimension
Ø 102 x 130 h mm
Cycle time
Up to 7800 pcs/hr
Yield
95%
Up-time
85%
Loading
Automated robot sorting system (optional)
Transport
Modular chain conveyor system
Reject
Reject identification
Quality Check
3D vision system (optional)
Offloading
Automated discharge, multiple boxes
Clean room environment
Built in class 100 Hepa filter
Surface cleaning
Air deioniser and dust removal station
Brush cleaning
Multiple controlled brush stations
Flame treatment
Multiple controlled burners
Plasma treatment
Multiple robotized torches (optional)
Lacquer
High solid UV curable lacquer
Spray
High performance spray coating system
Flash off
Controlled quartz infrared oven
Curing
Water cooled 3D UV lamps
Target material
Aluminum, Silver, Gold, Stainless Steel, Chrome, Copper, Titanium
Vacuum Chamber
Load lock system to maintain consistent high vacuum
Power
400V 3 phase 50/60 Hz 65 k VA
Air
6 bar 600 N l/min
Vacuum
- 0.8 bar 10 m3/hr
Vacuum Chamber
5 bar 34 lt./min, 16-18°C, pH 6-8, dH 4-8
Water
3 bar 40 lt./min, 16-18°C, deionized, <10 μS
Aargon
2 bar, 50 sccm, purity 99.999%
TRAY CONCEPT

Superlative Performance of an Innovative System

Trays travel along a conveyor between the different modules. Up to 13 parts could be arranged on a single tray. New formats are quick and easy to set-up, and different configurations can be stored in the system for instant recall and fast changeover, enabling production short runs for greater flexibility.
Would you like further information about the S8+3? Contact us now to see the S8+3!
